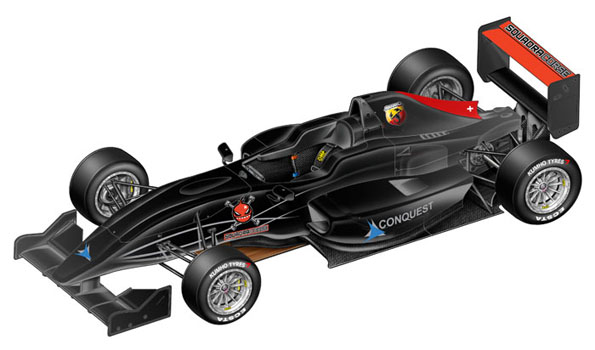

Formula Abarth
TECHNICAL CHARACTERISTICS
| chassis | ||
| Chassis | TATUUS FA010 Carbon composite monocoque, FIA F3 homologated | |
| CORTEX wheel tethers, removable head protection, roll hoop | ||
| Bodywork | Carbon fibre | |
| Seat | Carbon fibre, extractable, meeting FIA rules | |
| Safety harness | OMP Six-point, HANS system predisposed | |
| Steering rack | Tatuus machined aluminium | |
| aerodynamics | ||

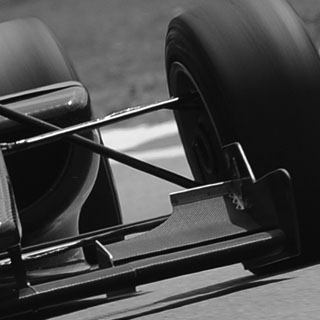

| Wings | Front wing with main plane and adjustable flaps | |
| Rear wing with 3 aero profiles adjustable | ||
| suspension | ||
| Front suspension | Double whishbone with pushrods - monoshock layout - camber, toe adjustable | |
| Rear suspension | Double whishbone with pushrods - twin shock layout - camber, toe, roll centre, anti-squat adjustable | |
| Shock absorbers | ORAM, bump and rebound adjustable | |
| Springs | Eibach 36 mm x 100 mm | |
| brake system | ||
| Calipers | AP four pistons, machined aluminium | |
| Brake | AP cast iron ventilated discs, 278mm x 16mm | |
| Pads | Ferodo | |
| wheels | ||
| Rims | ATS, Front 9x13", Rear 10,5x13"centre-bolt aluminium | |
| Tyres | MICHELIN, Front 180/550R13, Rear 240/570R13 | |
| engine | ||
| Engine | FPT 414TF unit 1.400cc. Turbo - 180 hp | |
| Electronics | MAGNETI MARELLI ECU and data acquisition | |
| Instrumentation | AIM steering wheel display | |
| Fuel Tank | PREMIER, FIA FT3 fuel cell ethanol compatible, 45 lt volume | |
| transmission | ||
| Gearbox | Sadev sequential six-speed gearbox - LSD differential | |
| dimension | ||
| Wheelbase | 2650 mm | |
| Front track | 1490 mm | |
| Rear track | 1455 mm | |
| Wheight | 525 kg including driver | |
